Transportable valve grinding machine for lens seats (LS)

  • Grinding machines
  • Grinding machine for lens seats (LS)

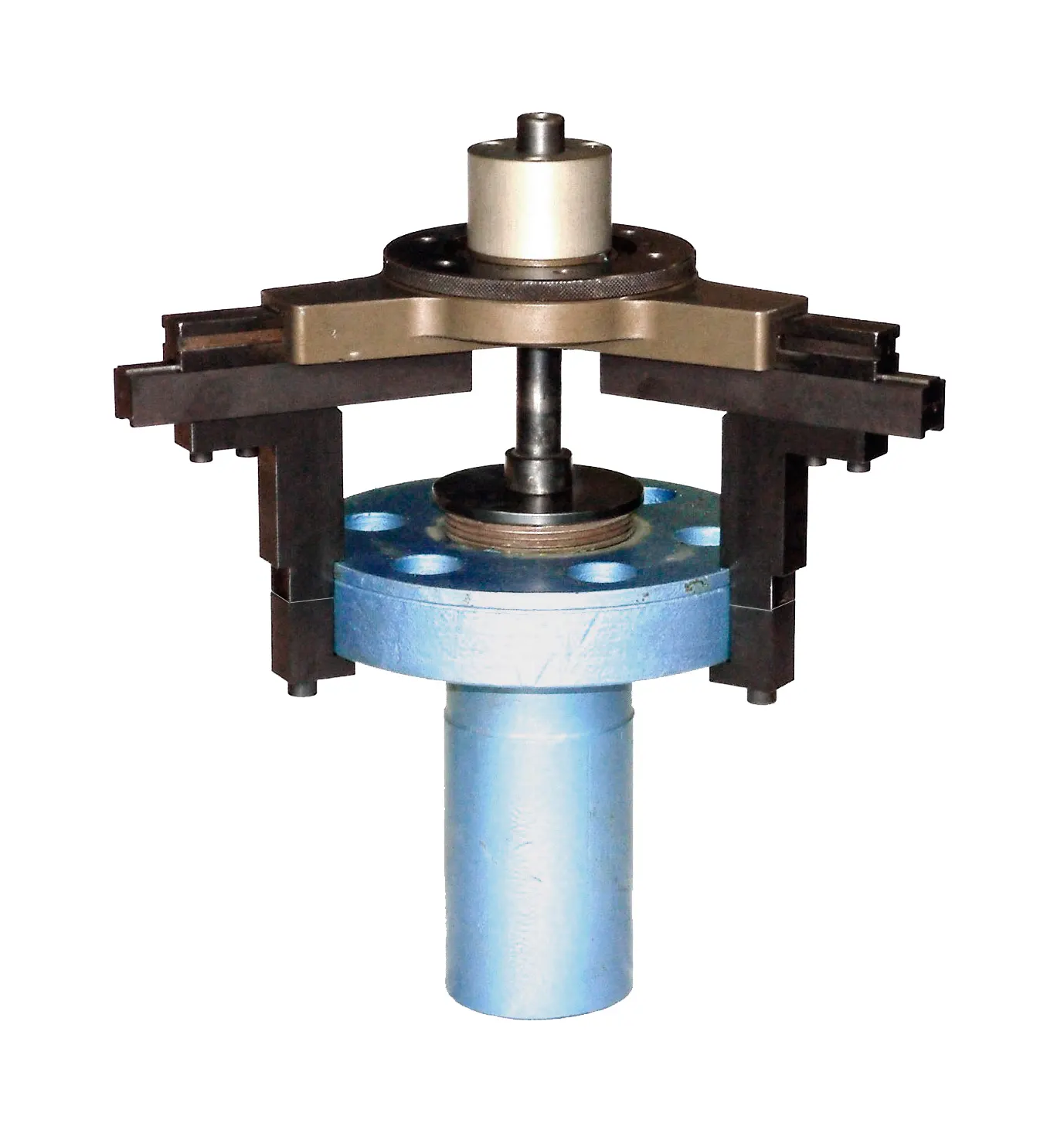

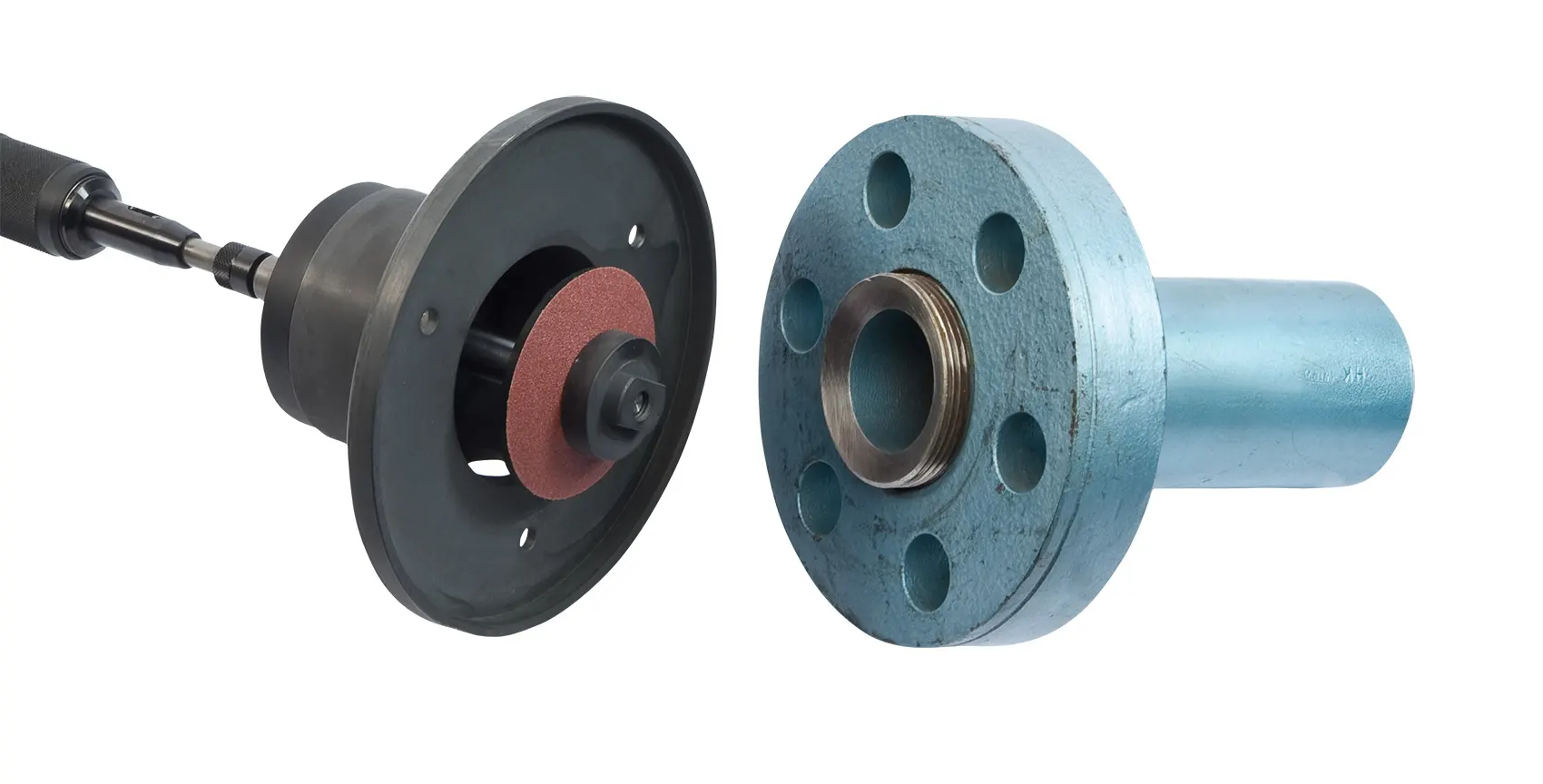

Handy and precise processing of lens seats with transportable valve grinding machine for lens seats (LS)

The quick and easy centering of the tools is a guarantee for effective and high-quality repair results.
Advantages
  • Simple operation
  • Centric machining guaranteed by simple centring using special guides or 3-jaw chuck
  • Low wear tools
  • Good price/performance ratio
  • Optimum grinding results due to adjustable contact pressure of the grinding tools against the sealing surface
  • Particularly high torque of the drive
Working range
  • DN 6 - DN 200 (1/4" - 8")
Seat angle
  • 140° (2x70°)
Drive
  • electrical (230/120 V, 50/60 Hz)
  • pneumatic (6-7 bar)
  • battery drive (18 V DC)

Product variants

ModelDN
LS-16–90 (1/4"–3 1/2")
LS-26–200 (1/4"–8")
All figures in mm (inch)



You are also welcome to find out more about our other portable sanding machines:

  • Transportable valve grinding machine for flat seats
  • Transportable valve grinding machine for conical seats
  • Transportable valve grinding machine
  • Transportable grinding machine for safety valves
